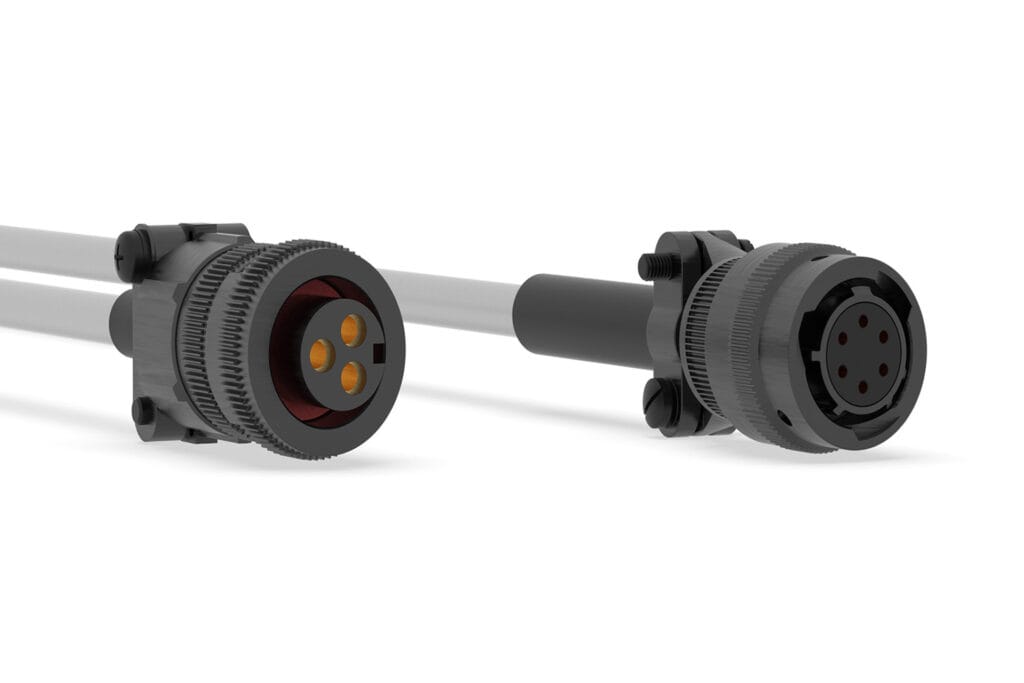

Load Cell Cables (Mil-Spec)
Robust cables with mil-spec connectors, designed to connect DFE tension load cells with amplifiers, display indicators or closed-loop controllers.
DFE load cell cables are manufactured with abrasion-resistant, shielded wire to minimize wear and prevent electromagnetic interference. Sealed, mil-spec connectors prevent corrosion of contacts and ingress of contaminants while operating in harsh environments.
FEATURES & BENEFITS
• Fits DFE transducers / load cells with standard connector
• Certified for use with DFE high-output semiconductor strain gauge load cells
• Shielded to resist electromagnetic interference
• Sealed connectors rated for harsh environments
• PVC jacketed to resist abrasion
• 5 year tension-free warranty
Do you have more questions about this product?
Complete the form below and a DFE Applications Engineer will contact you shortly.
DFE does not share information with 3rd party advertisers.
Wire Configuration: 3 Conductor
Conductor Type: Tinned Copper
Conductor Size: 24 AWG
Shielding: Braid, Foil
Jacket Material: PVC
Voltage Rating: 30 V
Temperature Range: -20° to 80° C
3-Socket to 3-Socket Cable
Connects Model C / F / UPB load cells to devices with bulkhead connectors
15 Ft Long – P/N: 721-1554
20 Ft Long – P/N: 721-1539
25 Ft Long – P/N: 721-1540
30 Ft Long – P/N: 721-1541
Custom Length – P/N: 721-0085
3-Socket to Flying-Leads Cable
Connects Model C / F / UPB load cells to devices with a terminal block
15 Ft Long – P/N: 721-1555
20 Ft Long – P/N: 721-1542
25 Ft Long – P/N: 721-1543
30 Ft Long – P/N: 721-1544
Custom Length – P/N: 721-0084
Wire Configuration: 6 Conductor
Conductor Type: Tinned Copper
Conductor Size: 24 AWG
Shielding: Braid, Foil
Jacket Material: PVC
Voltage Rating: 30 V
Temperature Range: -20° to 80° C
6-Socket to Twin 3-Socket Cable
Connects Model LT / NW / RFA / STR / TR / TW / VNW load cells to devices with bulkhead connectors
15 Ft Long – P/N: 721-1557
20 Ft Long – P/N: 721-1548
25 Ft Long – P/N: 721-1549
30 Ft Long – P/N: 721-1550
Custom Length – P/N: 721-0995
6-Socket to Flying-Leads Cable
Connects Model LT / NW / RFA / STR / TR / TW / VNW load cells to devices with a terminal block
15 Ft Long – P/N: 721-1558
20 Ft Long – P/N: 721-1551
25 Ft Long – P/N: 721-1552
30 Ft Long – P/N: 721-1553
Custom Length – P/N: 721-0964
REFERENCE DOCUMENTS
Load Cell Cable Data Sheet
Click the preferred product in the table below, then select CAD format to download.
Complete the form to enable your file download
| Product Code | Length | Load Cell End | Interface End |
| 721-1555 | 15 ft (4.6 m) | 3 Socket Connector | Flying Leads |
| 721-1544 | 30 ft (9.1 m) | 3 Socket Connector | Flying Leads |
| 721-1554 | 15 ft (4.6 m) | 3 Socket Connector | 3 Socket Connector |
| 721-1541 | 30 ft (9.1 m) | 3 Socket Connector | 3 Socket Connector |
| 721-1558 | 15 ft (4.6 m) | 6 Socket Connector | Flying Leads |
| 721-1553 | 30 ft (9.1 m) | 6 Socket Connector | Flying Leads |
| 721-1557 | 15 ft (4.6 m) | 6 Socket Connector | (2) 3 Socket Connectors |
| 721-1550 | 30 ft (9.1 m) | 6 Socket Connector | (2) 3 Socket Connectors |
Complete the form below and a DFE Applications Engineer will contact you shortly.
DFE does not share information with 3rd party advertisers.
To test continuity, probe the connector sockets and associated wire colors as listed below –
| Connector Socket Letter | Wire Color |
| Socket A | White |
| Socket B | Black |
| Socket C | Red |
| Socket D | Green |
| Socket E | Blue |
| Socket F | Brown |
