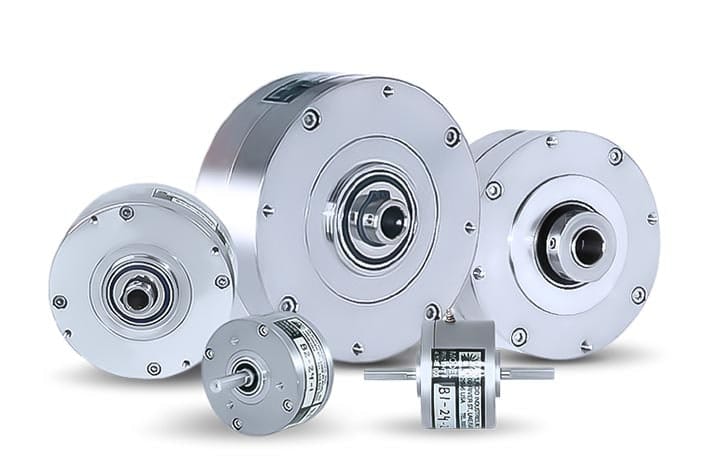

Small Magnetic Particle Brakes

Operating range from 0.05 oz-inches to 220 lb-inches of torque.

Magnetic particle brakes are maintenance free and ideal for clean room operation or use in any production area where traditional brake dust emissions are not permitted. Also called powder brakes, these units provide smooth and repeatable torque output proportional to electric input current.

DFE has partnered with Placid Industries to deliver high quality magnetic particle brakes perfect for use with our closed-loop tension controllers and load cells. In our experience, Placid Industries’ brakes deliver some of the widest torque ranges available with ultra smooth engagement. These important characteristics make Placid Industries’ brakes ideal for use in high-performance tension control systems.

For assistance sizing a magnetic particle brake or a complete tension control system, e-mail an applications engineer today or complete the ‘Request Info’ form below.

Placid Industries’ brakes and clutches are manufactured to exacting standards in the USA and come with a one year warranty. Most models are available to ship in 1-2 days.

Do you have more questions about this product?
Complete the form below and a DFE Applications Engineer will contact you shortly.

DFE does not share information with 3rd party advertisers.

Model	Torque Range	Max RPM	Slip Heat Dissipation (watts)	Max Overhung Load (lbs)	Weight (lbs)
B5ZD	0.05 - 1 oz.in.	4000	1.5	0.7	0.2
B5Z	0.1 - 5 oz.-in.	3500	2	0.7	0.2
B1	0.6 - 16 oz.-in.	3000	3.5	4	0.6
B2	1.2 - 40 oz.-in.	2500	8	5	1
B6	0.2 - 6 lb.-in.	2000	15	25	2
B15	0.3 -15 lb.-in.	2000	20	25	2.5
B35	0.6 - 35 lb.-in.	1800	30	50	4
B60	1 - 60 lb.-in.	1800	50	100	7
B115	2.5 - 115 lb.-in.	1800	55	120	8
B150	3 - 150 lb.-in.	1300	80	120	12
B220	4 - 220 lb.-in.	1000	110	120	21
